Protective Glass

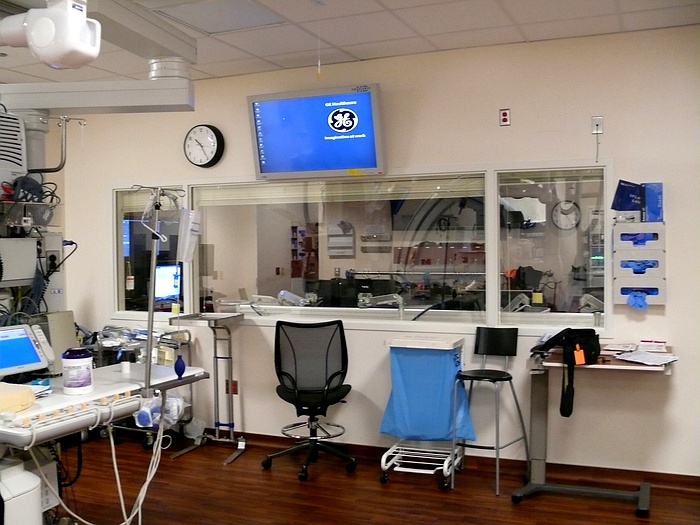

It is essential that the X-Ray protective glass used in x-ray protection rooms offer sufficient protection. A-accurate Radiation lead glass is used in x-ray rooms as windows through which the operator may observe his patient while himself being adequately protected from the x-ray emissions.

A-accurate Radiation glass is a lead -barium type glass with more than 60% heavy metal oxide including at least 55% lead oxide. Both glass surfaces are mirror-polished. This special quality glass is well qualified to meet the high standards of stringent safety regulations around the world. Manufactured by a continuous automatic process this glass is able to maintain a rigidly controlled steady level of physical properties.

Available in various lead equivalents to meet specific needs. Call us about your specific requirements.

Pro-GR Lead Glass for Shielding Against 0.511 MeV Gamma Rays in PET Scan Treatment

Pro-GR is made of glass materials having a lead oxide content rate of roughly 70% that is equivalent to ultra-high lead content block glass for nuclear power facilities. Pro-GR has a radiation shielding capability higher than that of the conventional LX-57B.

Pro – GR Product Data

Thickness (mm)Pro – GR 14.7Pro – GR 21.8
Lead Equivalent (mm)57.5
Weight (lbs/ft2)15.823.5
Visible Light Transmission83%83%
Specific GravityMin. 5.20Min. 5.20
Refractive Index1.811.81
Maximum Size1000 mm x1500 mm (42″ x 60″)
